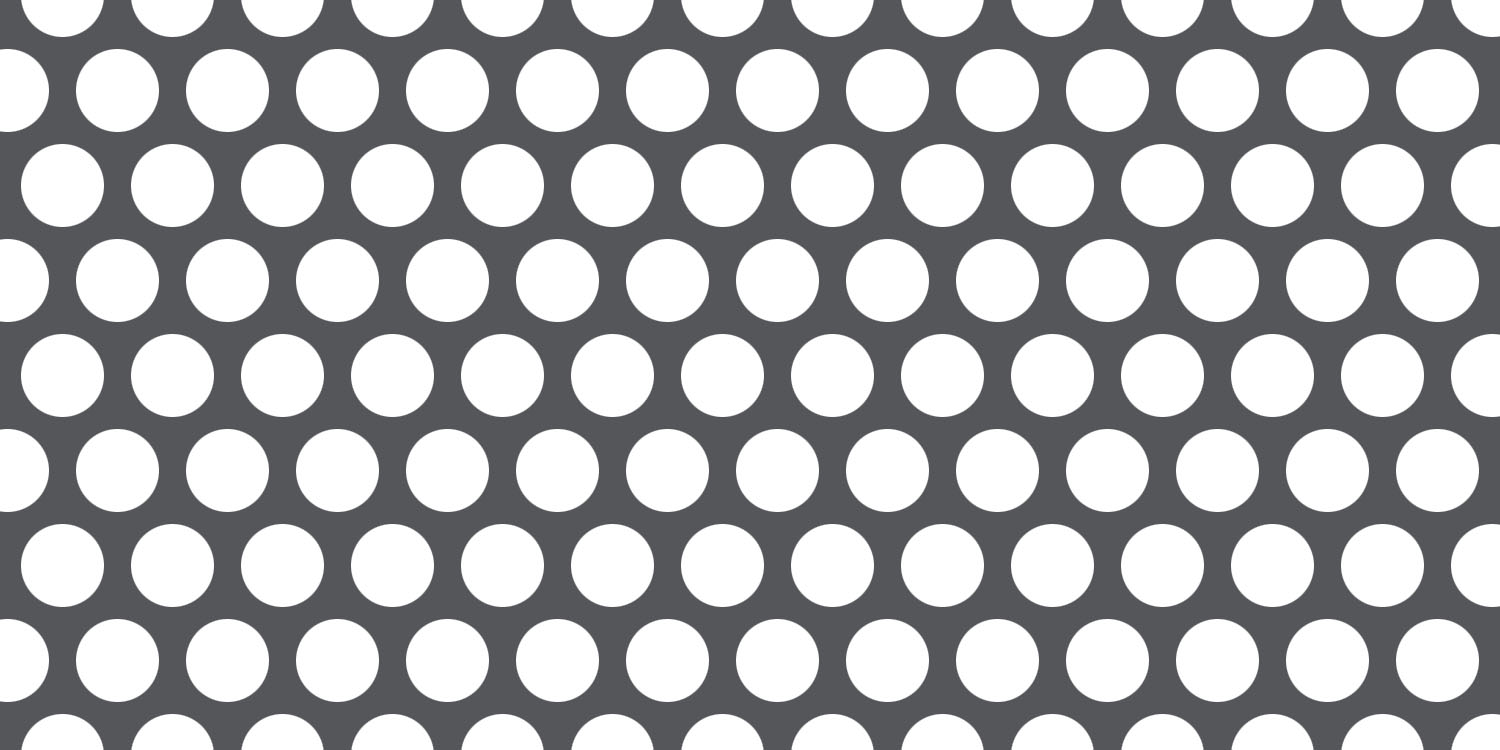

Please note: pattern not shown to scale and is indicative only.
Tilley & Patton Ltd reserve the right to change specifications without notice to allow for product improvement.
Specifications:
Pattern: Round
Hole Size: ø9.5mm
Spacing: 12.7mm Ctrs
Pitch: 60°
Open Area: 51%
Stock sheet options available:
Aluminium: 2.0, 3.0mm
Downloads:
Stock Sheet Brochure PDF
When printed at “actual size”, patterns will be shown at 1:1 true size
This design is available for custom punching. Talk to us about manufacturing this design to meet your requirements.
Our stock off-the-shelf perforated metal patterns are used extensively in the architectural, engineering, construction, manufacturing, food processing, material handling, safety, security and agricultural sectors.
Give our experienced team a call to find out more about our custom manufacturing, design assistance, punching, laser cutting, shearing, folding, forming, fabrication and finishing capabilities for your project. Our New Zealand-based factory is equipped for large scale bespoke solutions and high-volume production runs.
Tilley & Patton Designline Perforation is part of Tilley & Patton Ltd. Find out more about our full range of product offerings and capabilities by visiting tilleygroup.co.nz
